crRNA Target Site:5’ GCTCAGGCTTTTTGTTAGACAGG 3’ |
DNA Donor Sequence: Mutant* 5’ ACTCACCCAGCAGCTCAGGCTTTTTGTTAAACAGGATTTGGTAG AAAATGTGATAATCT 3’ |
Cas9: TrueCut™ Cas9 Protein |
F Primer for PCR/ |
R Primer for PCR/ |
Red = PAM Site, Blue = Mutation
AICS-0106
SNPNM_000257.4(MYH7):c.872C>T(p.Ser291Phe) |
Gene SymbolMYH7 |
Gene Namemyosin heavy chain 7 |
Parental LineAICS-0075 cl. 85 ACTN2 |
| Clone Number | Clone Type | Replicate | Genotype |
|---|---|---|---|
| 40 | Control | A | WT/WT |
| 88 | Control | B | WT/WT |
| 104 | Mutant | A | S291F/WT |
| 134 | Mutant | A | S291F/WT |
AICS-0106
MYH7 in WTC-mEGFP-ACTN2 (mono-allelic tag)

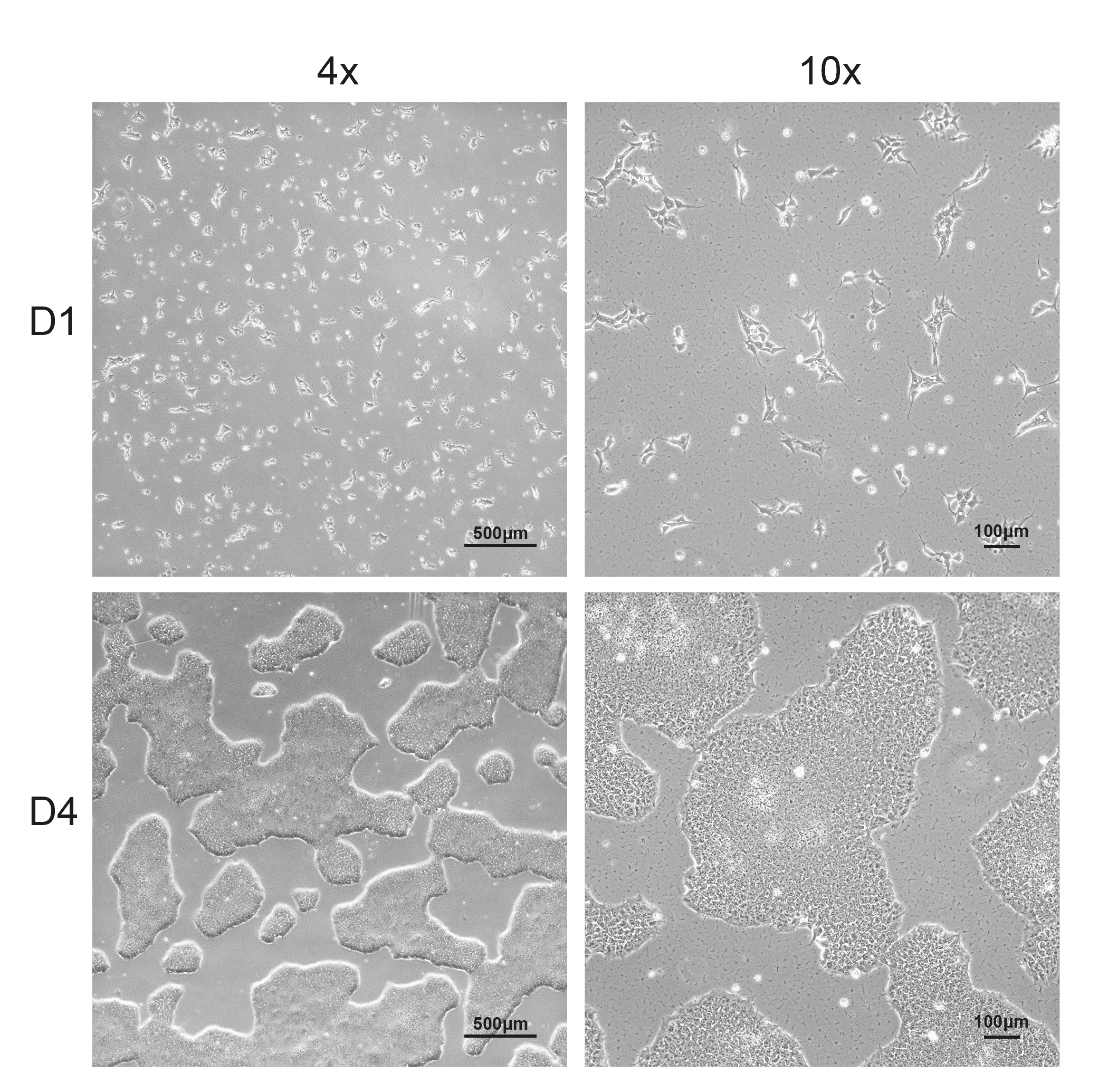

One vial of distribution lot was thawed (cells were treated with ROCK inhibitor for 24hrs post-thaw - refer to culture protocol). A four panel image of clone 88 (wt/wt) is shown here and is a representative image for all clones in the collection. Cultures were observed daily. Colonies were imaged one (D1) and four (D4) days post-thaw using a Leica microscope at 4x and 10x magnification. Scale bars are shown.
EditingDesign
GenomicCharacterization
StemCellCharacteristics

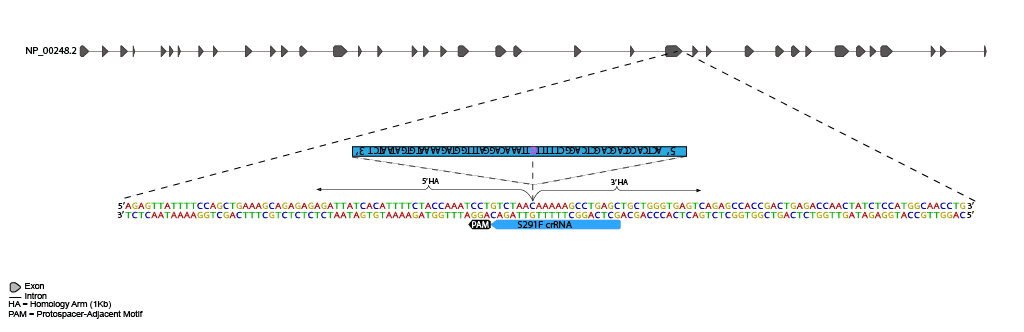

CRISPR-Cas9 methodology was used to introduce a single base pair mutation to MYH7, and mEGFP at C-terminus of ACTN2 as shown below.
